Shimano 6010 Baitrunner Repair

[Elton 172]

Posted on behalf of JMA. Please add all replies to this thread:

Shimano Aero GT baitrunner, model 6010. Loaned it to a friend and came back broken. Bail arm doesn't automatically click over after casting. Can do it manually but very stiff. Is there a simple way to fix this?

Cheers

JMA

[Dick Dastardly 88]

Yes its a common probem on the 5010,6010,8010 modes. Dont force the bail arm else you will break the part that has come lose. To save trying to explain I will find and post an exploded diagram to show you the part that s most likey causng the problem.If its come out of place simply relocate it,if broken you can get a replacement part from Shimano.

[Andrew Burgess 12]

If this any help toward it - here are the diagram and part numbers in 6010





[Dick Dastardly 88]

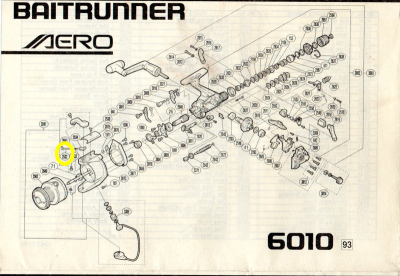

Cheers bruv! The part that is most likely the problem is No:2532 will put up a copy of the pic my bruv posted with it highlighted to give you an idea where it is

[Elton 172]

Just in case we don't hear back from JMA, I'd like to say 'thanks' to you both.

[Dick Dastardly 88]

Any time mate. Its strange but Andrew had the same fault on an 8010 of his a few winters back.Took about three minutes to fix but about 3 weeks for the spare part to arrive!

[Elton 172]

Getting quite a few hits to this thread, so here's a link to Shimano 6010's for sale:



http://www.anglersnet.co.uk/shopping/search/shimano-6010

[will1950 0]

hi ive got the same problem,did you get any useul replys to your query?thanks

[Newt 290]

Hi Will. I don't know if you could see some of the above photos but Budgie (our main reel repair expert) says that part 2532 probably needs reseating or replacing if it is broken rather than just out of place.



[SpecimenSean 0]

if you dont want to do the repair yourself send it to the guys at Felindre service centre. www.shimanofelindre.co.uk



They only had my reel 2 days and included a service as part of the repair. I had made a reel (ho ho ho) mess of the internals of my super baitrunner by pushing the spool on too hard. A lot of parts were replaced (and all the damaged ones sent back so i could see) and all cost about £30. Well worth it imo.
